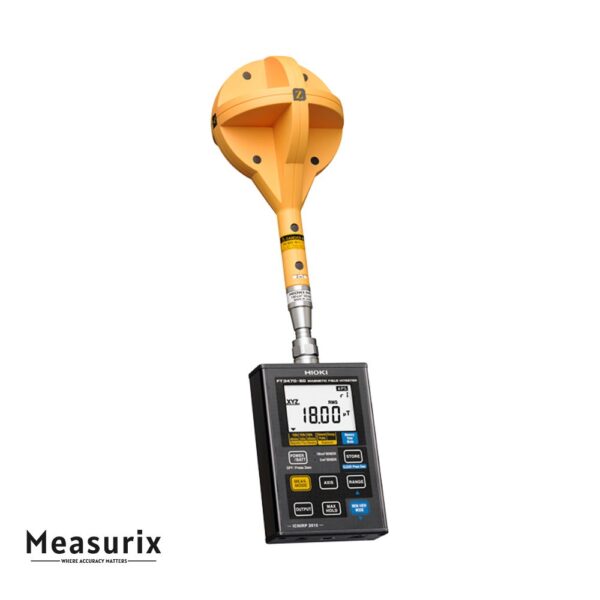

Hioki FT3470-51 Magnetic Field HiTester

The Hioki FT3470-51 Magnetic Field HiTester is engineered for precise measurement of magnetic flux density and exposure levels in both occupational and general public environments. It is particularly useful for assessing electromagnetic field exposure generated by electrical equipment, appliances, and devices, ensuring compliance with established safety standards.

Equipped with a 100 cm² sensor, the FT3470-51 offers three-axis measurement capabilities, providing comprehensive data on magnetic field strength in all directions. The device supports multiple display units, including Tesla (T), Gauss (G), and Ampere per meter (A/m), allowing users to choose the most appropriate unit for their specific application.

The FT3470-51 operates over a broad frequency range of 10 Hz to 400 kHz, with selectable bandwidths of 10 Hz to 2 kHz, 2 kHz to 400 kHz, and 10 Hz to 400 kHz. This flexibility enables accurate measurements across various types of electromagnetic fields, from low-frequency power lines to high-frequency electronic devices.

To facilitate data analysis and reporting, the FT3470-51 includes PC application software that enables users to transfer measurement data to a computer for further processing. The device also features internal memory capable of storing up to 99 measurement values, providing a convenient way to log and review data over time.

Designed with user convenience in mind, the FT3470-51 offers functions such as memory recall, maximum value hold, and auto power-off to conserve battery life. It is powered by four AA batteries and includes an AC adapter for continuous operation.

In summary, the Hioki FT3470-51 Magnetic Field HiTester is a reliable and comprehensive tool for measuring magnetic field exposure, ensuring safety compliance, and supporting research and development in electromagnetic field studies.

Features

• Broad Frequency Range: Measures magnetic fields from 10 Hz to 400 kHz, accommodating a wide variety of applications.
• Three-Axis Measurement: Provides comprehensive data on magnetic field strength in all directions.
• Multiple Display Units: Supports Tesla (T), Gauss (G), and Ampere per meter (A/m) units for versatile measurement reporting.
• Selectable Bandwidths: Offers 10 Hz to 2 kHz, 2 kHz to 400 kHz, and 10 Hz to 400 kHz bandwidth options for tailored measurements.
• Standard Compliance: Meets ICNIRP 2010 and IEC/EN 62233 standards for electromagnetic field exposure assessment.
• PC Connectivity: Includes PC application software for data transfer and analysis.
• Internal Memory: Stores up to 99 measurement values for convenient data logging.
• User-Friendly Interface: Features a clear display and intuitive controls for ease of use.
• Power Options: Operates on four AA batteries with an optional AC adapter for continuous use.
• Safety Features: Equipped with functions like memory recall, maximum value hold, and auto power-off to enhance user experience and conserve energy.

Includes

• 100 cm^2 Sensor ×1
• Instruction manual ×1
• CD-R (PC application software Data Viewer for FT3470) ×1
• USB cable ×1
• LR6 (AA) alkaline battery ×4
• AC adapter 9445-02 ×1
• Carrying case ×1
